A smaller footprint
Space used wisely
The upright shape uses height instead of demanding the length of a reclined tub. It gives garages, compact home gyms and dedicated wellness corners a way to keep the plunge visible and ready without surrendering the whole room.
A clearer entry

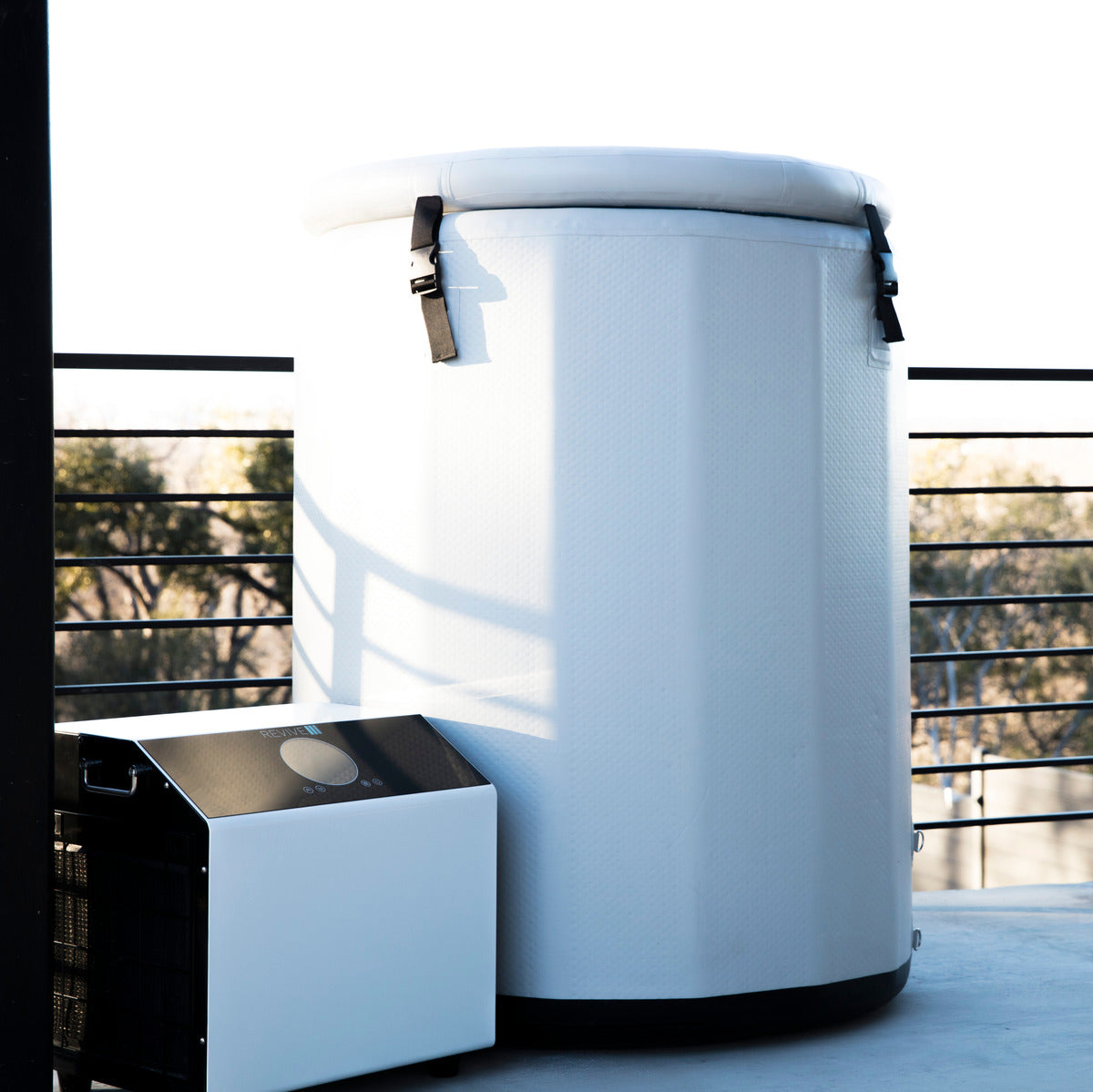

The included inflatable step creates a defined place to enter and exit instead of improvising with household furniture. That small detail makes the upright format easier to integrate into a repeatable routine.

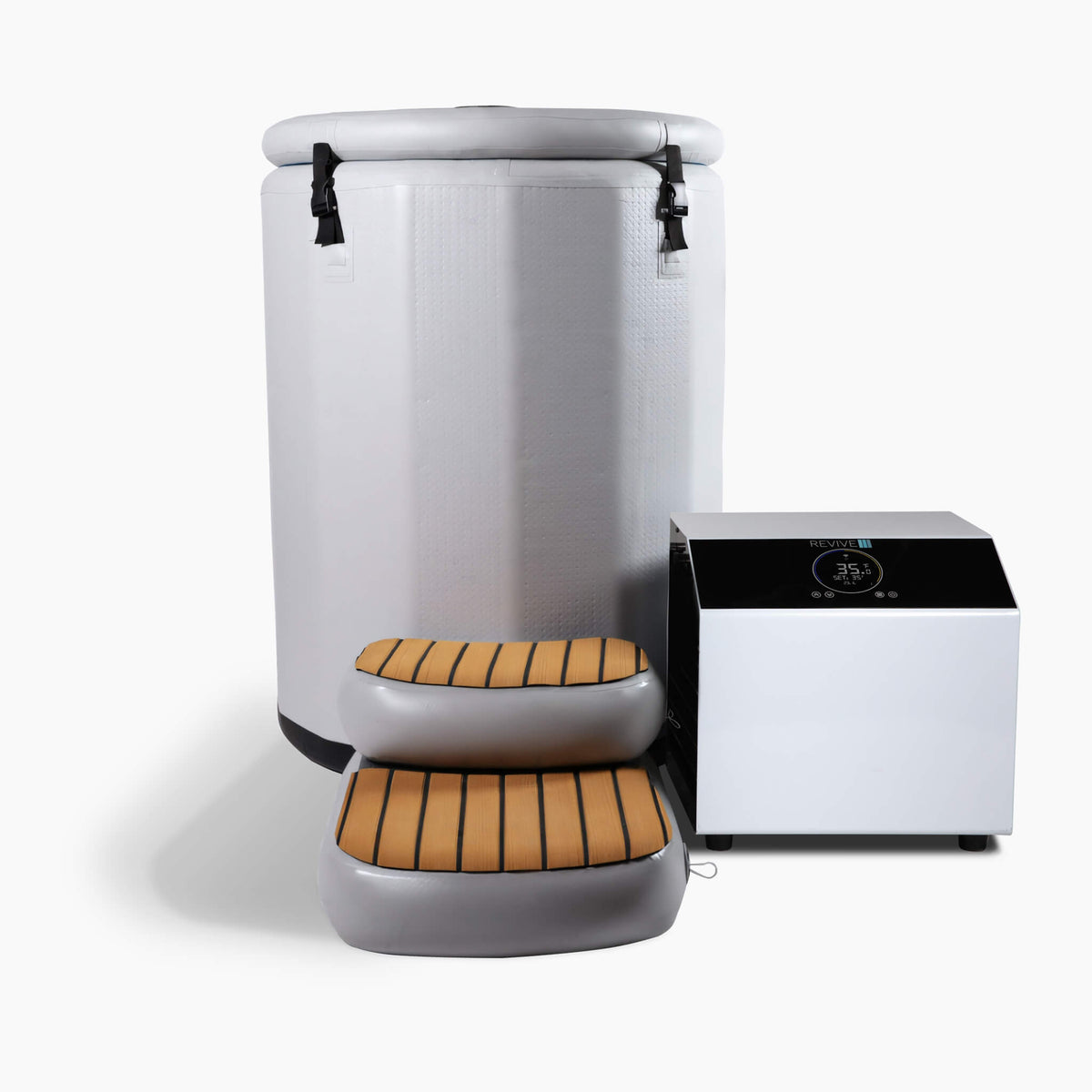

Designed as one complete system
Vertical construction
Chiller selection
Filtered circulation
A simple setup plan
Map the approach

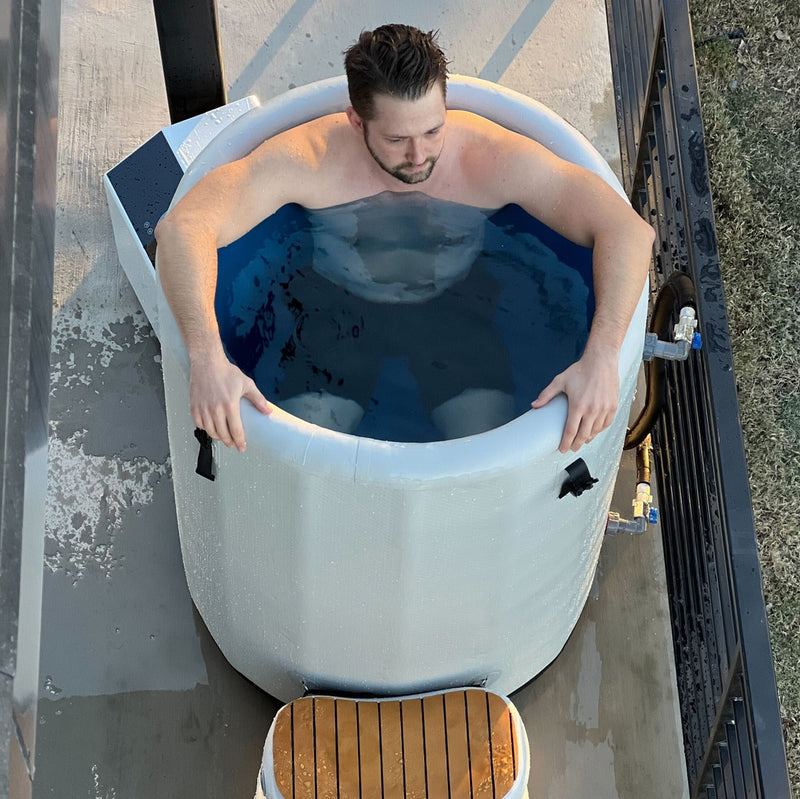

The barrel is 31.5 in across and 43 in high. The step measures 20.5 in by 20.5 in and creates an approach depth of about 52 in. Measure doorways, overhead clearance and the place where you will stand before entering.
Plan for water weight
Revive publishes 791 lb at the recommended 90 gal fill and 916 lb at the 105 gal maximum. Confirm the support surface, especially on raised floors. Add a water resistant floor covering indoors.
Circuit and clearance
Nova requires a 110V GFCI source with at least 10A and 12A recommended. Core and Apex require a dedicated 120V, 15A circuit. Preserve 24 in of clearance at the fan area and shield the chiller from direct precipitation.
Connect with intent
Inflate the barrel to 10 PSI and the cover to 7 PSI, then confirm the top inlet and bottom outlet hose direction. Check filters, O rings and valves before filling above the lower outlet. Allow 2 to 3 minutes for trapped air to purge, then complete the initial 10 to 15 minute sanitation cycle.
A SIMPLE CARE SCHEDULE
Cold plunge ownership becomes simpler when the recurring jobs are visible before purchase. These are the core checks that keep the system ready to use.
Before every session

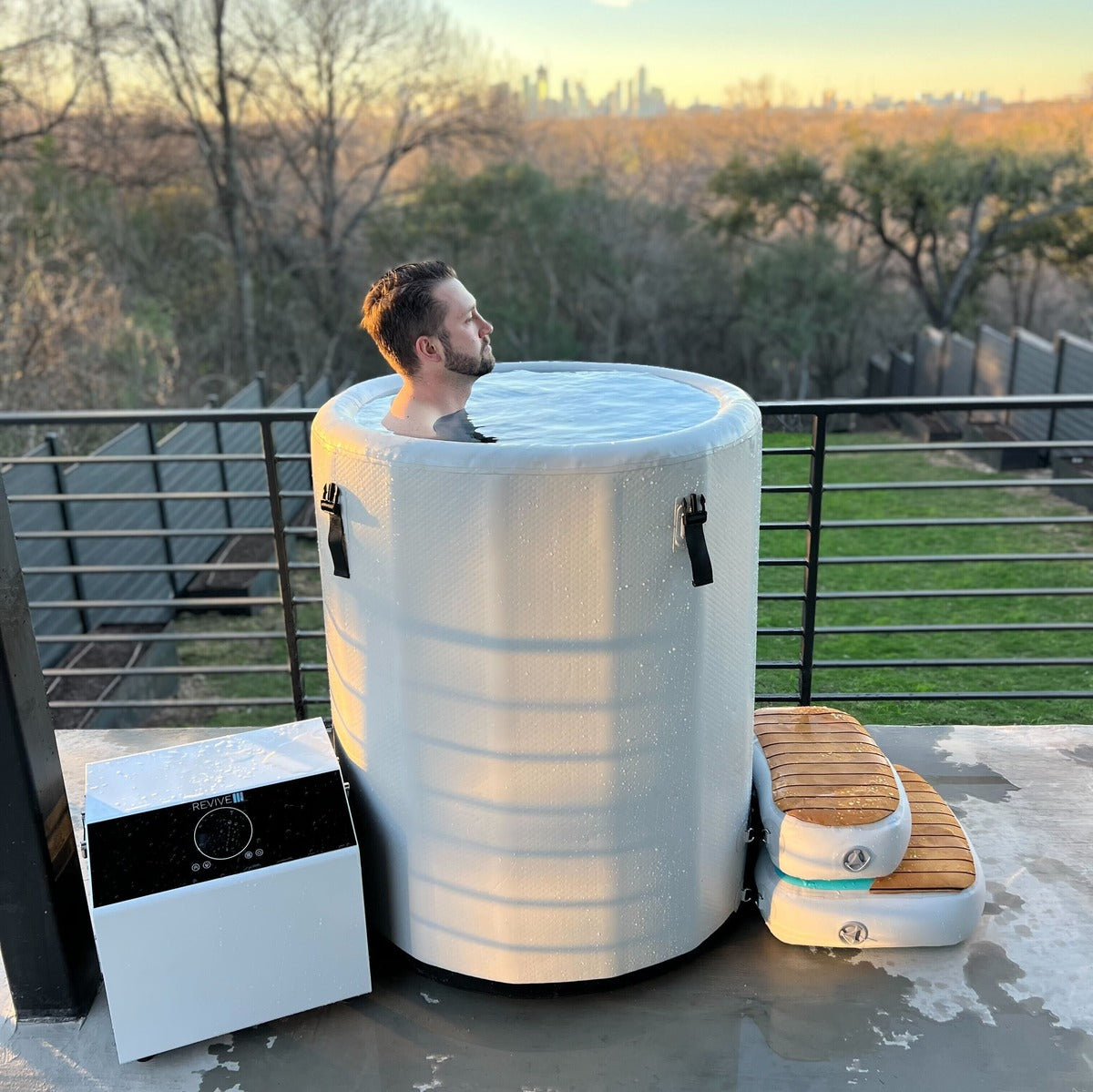

Confirm that the step is firm, the cover is fully removed and the water is clear. Check the water level, hose connections and visible flow, then look around the barrel base and chiller for new moisture.
Every 2 to 4 weeks
Rinse the metal mesh prefilter and inspect the 20 micron cartridge for discoloration or reduced flow. Daily use generally calls for cartridge replacement about once a month.
Every 2 to 3 months
Pump water out with the chiller or use the supplied garden hose adapter. Clean the empty barrel with a soft nonabrasive cloth, then check the base seam, valves, cover straps and step before refilling.
Every 6 months
Follow the deep cleaning procedure for the selected chiller. Remove dust from the air filter and condenser area, inspect the power cable and hoses, and correct worn seals before they become leaks.
Clear answers about temperature, installation, water care and warranty.
| Manufacturer | Revive Plunge |
|---|---|
| Product type | Inflatable vertical barrel cold plunge with external chiller |
| Configurations | Nova 0.3 HP, Core 0.8 HP or Apex 1 HP chiller |
| Barrel dimensions | 31.5 in diameter x 43 in H |
| Step dimensions | 20.5 in W x 20.5 in D x 16 in H |

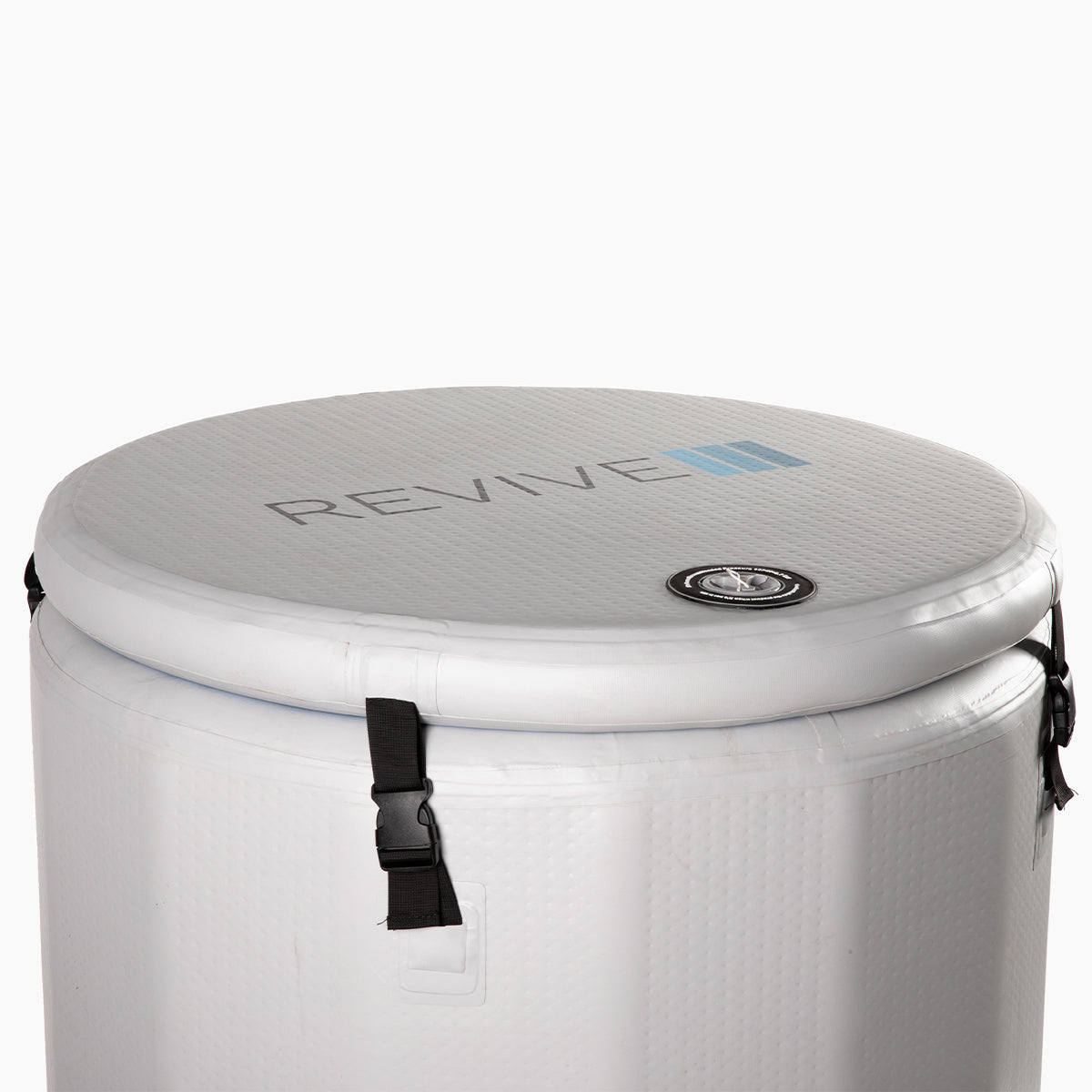

| Construction | Fully insulated, UV resistant drop stitch PVC barrel with insulated cover |
| Chiller dimensions | Nova 20 in W x 12 in D x 16 in H; Core 16 in W x 18 in D x 18 in H; Apex 15.5 in W x 20 in D x 23.3 in H |
| Cooling and heating | Nova cooling only; Core cooling and heating; Apex cooling, heating and ice mode |
| Published temperature range | Nova to 37°F; Core 35°F to 107°F; Apex 32°F to 107°F |
| Filtration | 20 micron cartridge filter plus washable metal mesh prefilter on all chiller configurations |
| Sanitation | Built in ozone with Core and Apex; ozone is not documented for Nova |

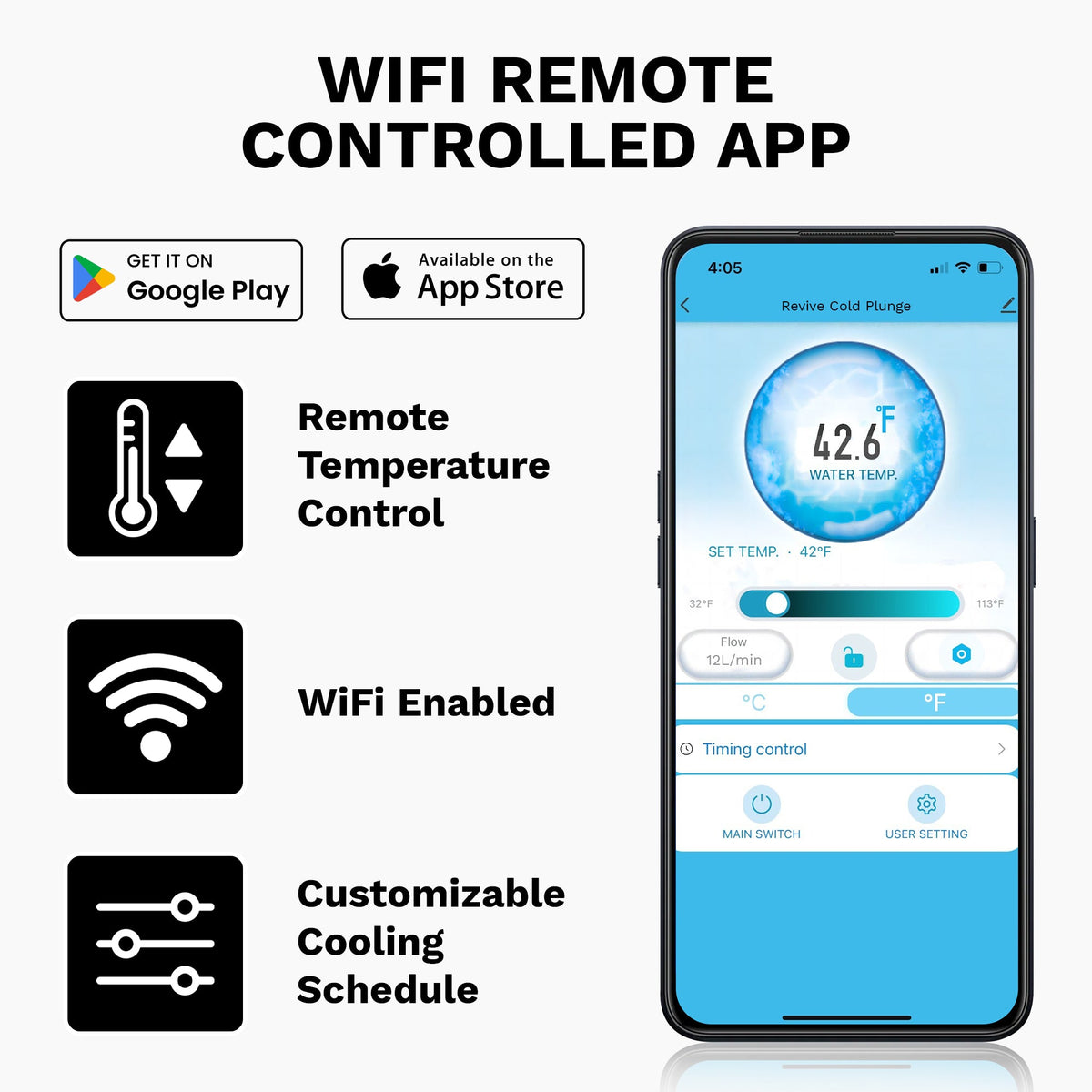

| Controls | Chiller touchscreen plus remote mobile app control |
| Published user capacity | Up to 4 people |
| Recommended water capacity | 90 gal |
| Maximum water capacity | 105 gal |
| Barrel dry weight | 40 lb |
| Chiller dry weight | Nova 56 lb; Core 90 lb; Apex 100 lb |
| Published barrel plus water weight at recommended capacity | 791 lb |
| Published barrel plus water weight at maximum capacity | 916 lb |
| Electrical requirement | Nova 110V GFCI source with at least 10A and 12A recommended; Core and Apex dedicated 120V, 15A circuit |
| Plumbing and drainage | No permanent plumbing required; drain with the chiller pump or connect a garden hose to the chiller outlet using the included adapter |
| Ventilation | Maintain 24 in clearance at the chiller fan area |
Buying equipment to train, recover, and take care of your health at home isn't always simple. At Kinaura Life, we want to help you choose better and buy with peace of mind.
*For shipping outside the contiguous United States (Alaska, Hawaii, and U.S. territories), email us at hello@kinauralife.com.
Product reviews by Revive Plunge.

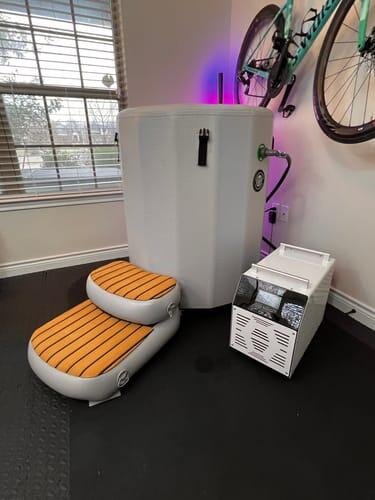

This was the perfect plunge for the space I had to work with. I had been wanting a cold plunge for a long time, filling my bath tub with ice multiple times a week and it was such a hassle. I didn’t have a lot of available space to put one though, and didn’t want one of those cheap looking pop up pods. This one looks great, is really sturdy, and is big enough for my 6’3” frame to get all the way in. Really happy with this purchase
