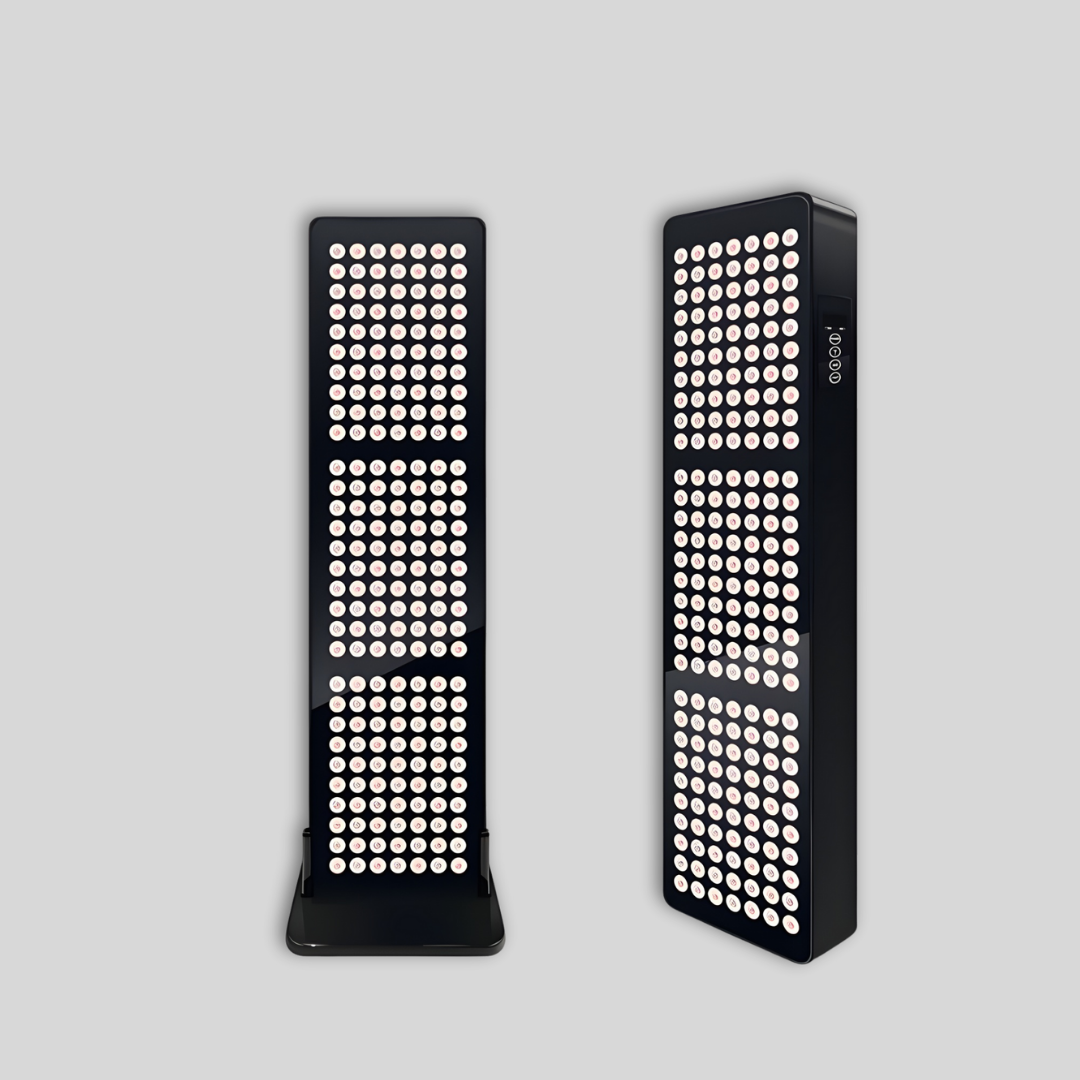

Protocol⁴ 1000W red light therapy panel detail

Near Infrared Red Light Therapy Panel - Protocol⁴ 1000W

Name: Near Infrared Red Light Therapy Panel - Protocol⁴ 1000W
Brand: Protocol4Health
Price: 2950.00 USD
Availability: InStock

Protocol4Health

Regular price $2,950.00

Regular price Sale price $2,950.00

Free shipping

Five Red & Near Infrared Wavelengths

300 LEDs, 30° Beam Angle

5 Brightness Levels, 6 Pulse Modes

Bring five red and near infrared wavelengths into a home recovery routine with a 300 LED panel that fits against a wall, on its included floor base or on an optional door mounting system. Separate red and NIR channels, five brightness levels and six pulse modes let you shape each session around the area and exposure you want.

Delivery & Assembly

Free shipping is included. Most standard orders ship within 5–60 business days once payment and required order information are complete. Tracking is supplied when available. The floor base requires basic assembly using supplied fasteners, with two adults supporting the panel during attachment and lifting. Inspect the carton, LED surface, housing, fans, controls, cord and base on arrival and record visible damage on the receipt.

Setup, Placement & Resources

Panel dimensions: 11.02 × 34.65 × 2.80 in

Panel weight: 26 lb

Placement: Stable, level and dry indoor surface

Cooling: Leave fan openings unobstructed

Outlet: Grounded outlet matching the rating label

Floor installation: Supplied base and fasteners

Alternative installation: Optional compatible door hanging kit

Keep the light path clear of mirrors, reflective surfaces, water and flammable material. Route the cord away from walking paths and leave room for the selected exposure distance.

Warranty

One year limited warranty from delivery for the original purchaser. Eligible defects in materials and workmanship under normal intended use are covered. A component may be repaired or replaced, or an equivalent replacement supplied. Normal wear, cosmetic marks that do not affect operation, misuse, liquid damage, unsuitable power, unauthorized work and improper setup or maintenance are excluded. Written terms supplied with the order control.

Questions before you buy?

(302) 208-4650

Monday–Friday · 9am–4pm CT

Near Infrared Red Light Therapy Panel - Protocol⁴ 1000W

$2,950.00

RED AND NEAR INFRARED LIGHT

Make Space for Light in the Routine You Already Have

The Protocol⁴ 1000W panel gives you a fixed place to return to after training, mobility work or a long day. Stand or sit at your selected distance, choose the light channels and give the session its own place in the week.

Five wavelengths spread across 300 LEDs, with separate controls for red and near infrared output. The panel can run both channels together or focus the session on either range.

Brightness, pulse and time are adjustable from the panel or remote. Begin with a comfortable distance and lower settings, then keep the routine consistent enough to understand how your body responds.

At just under 35 inches tall, the panel brings broad light exposure into a dedicated recovery room, gym or quiet corner of the home. Repositioning allows you to direct the light across different sides or areas of the body.

Choose the Light That Fits the Session

Use the two red wavelengths, the three near infrared wavelengths or both groups together. Separate RED and NIR channels let you return to the same configuration or adjust the light around the focus of the day.

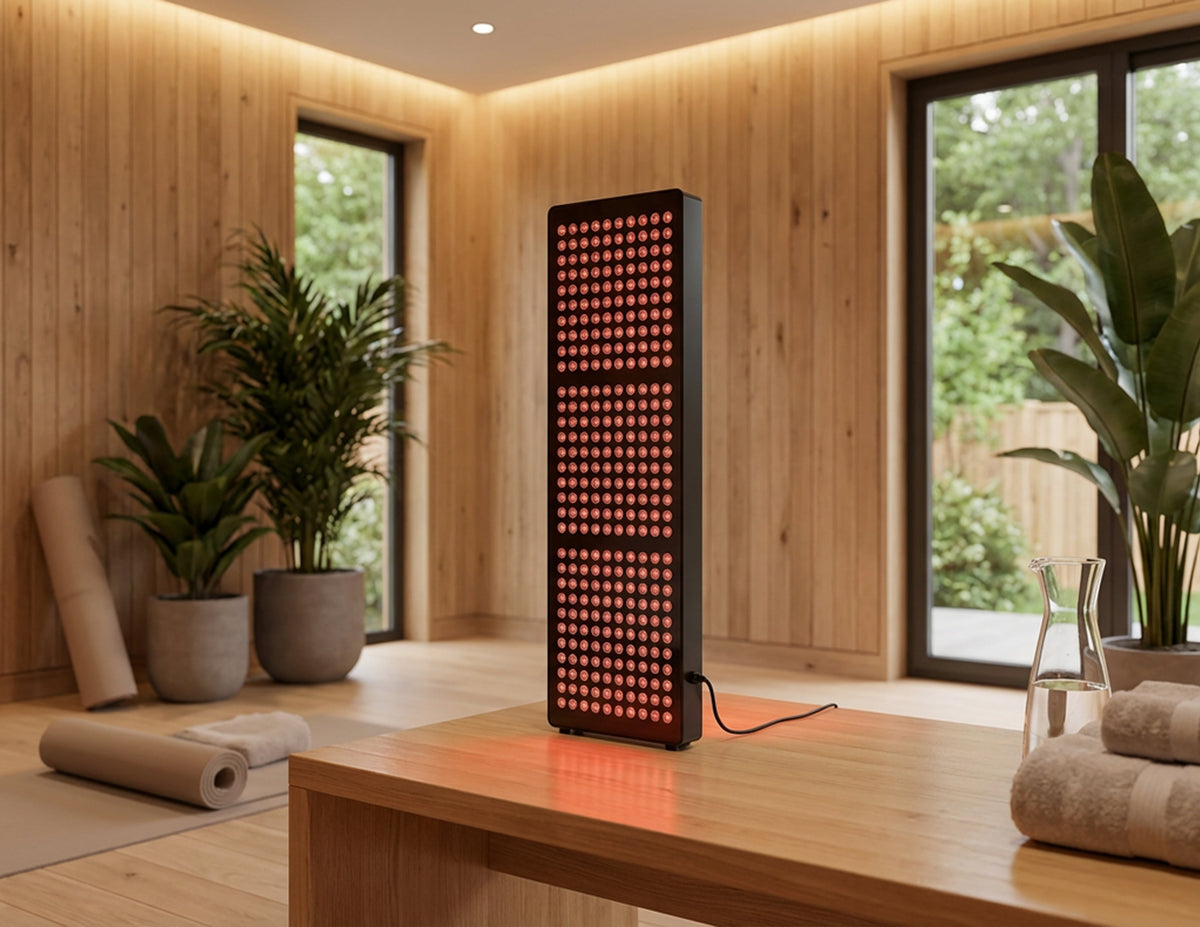

Protocol⁴ 1000W red and near infrared light therapy panel illuminated on its floor base

Person using the Protocol⁴ 1000W near infrared light therapy panel with protective eyewear

Set the Distance Around the Area You Want to Reach

Place the panel in front of the body and choose a consistent distance for the area you want to expose. At 6 inches, the light is concentrated across a 37.8 × 14.2 inch area. At 24 inches, coverage expands to 47.2 × 23.6 inches. Five brightness levels and a timer of up to 30 minutes let the routine develop from a comfortable starting point.

A Dedicated Recovery Point at Home

The included floor base keeps the panel upright on a stable surface. Its 2.8 inch depth and 26 lb weight suit a home gym or wellness room, with an optional door hanging kit available for another placement option.

Protocol⁴ 1000W red light therapy panel positioned in a home wellness room

630 and 660 nm red light
810, 830 and 850 nm near infrared
300 LEDs
Separate RED and NIR channels
Combined mode
Five brightness levels
Six pulse frequencies
Continuous output
Timer in five minute increments
30 minute maximum
30° beam angle
Two cooling fans
Remote control
Included floor base
Optional door hanging kit
50,000 hour rated life
0 µT at 3 in
Full body use with repositioning

Product	Protocol⁴ 1000W Red Light Panel
Product class	1000 W
Specified power consumption	390 W
LED count	300
Wavelengths	630, 660, 810, 830 and 850 nm
Output channels	RED and NIR
Beam angle	30°
Brightness	Five adjustable levels
Pulse modes	10, 40, 73, 146, 293 and 587 Hz
Continuous mode	Pulse off
Timer	Five minute increments up to 30 minutes
Cooling	Two fans
EMF	0 µT at 3 in
Rated LED lifespan	50,000 hours
Panel dimensions	11.02 × 34.65 × 2.80 in
Net weight	26 lb
Electrical input	Voltage and frequency shown on product rating label
Use classification	Full body use with repositioning where required
Remote battery	23A 12 V
Included	Panel, remote control, power cord, protective eyewear, floor base, base fasteners and owner's manual (door hanging kit sold separately)
Irradiance at 6 in	156 mW/cm², coverage 37.8 × 14.2 in
Irradiance at 12 in	140 mW/cm², coverage 41 × 17.3 in
Irradiance at 18 in	132 mW/cm², coverage 44.1 × 20.5 in
Irradiance at 24 in	103 mW/cm², coverage 47.2 × 23.6 in
Warranty	One year limited warranty
