450, 525, 633, 660, 850 and 940 nm.

Adjustable up to 30 minutes. Begin conservatively.

Half cabin geometry with 120° exposure; position and angle determine the illuminated area.

Required throughout every illuminated session.

Designed for homes, wellness spaces, recovery rooms and supervised professional settings.

Seek guidance for pregnancy, significant eye conditions, photosensitivity, photosensitizing medication, current cancer care, a recent procedure or another light restriction.

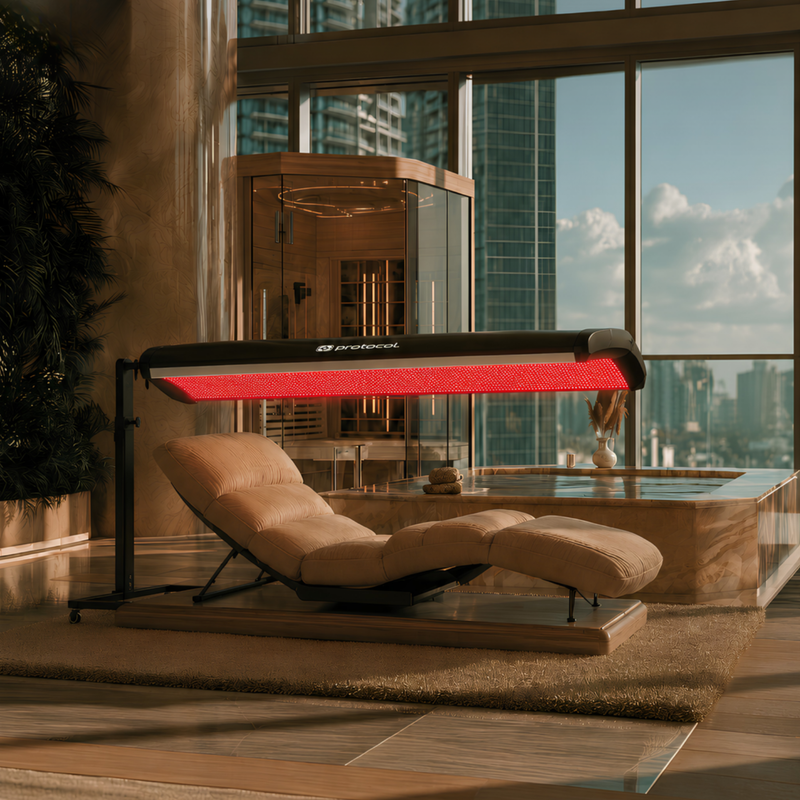

Protocol⁴ P1 light therapy panel positioned horizontally above a wellness lounger

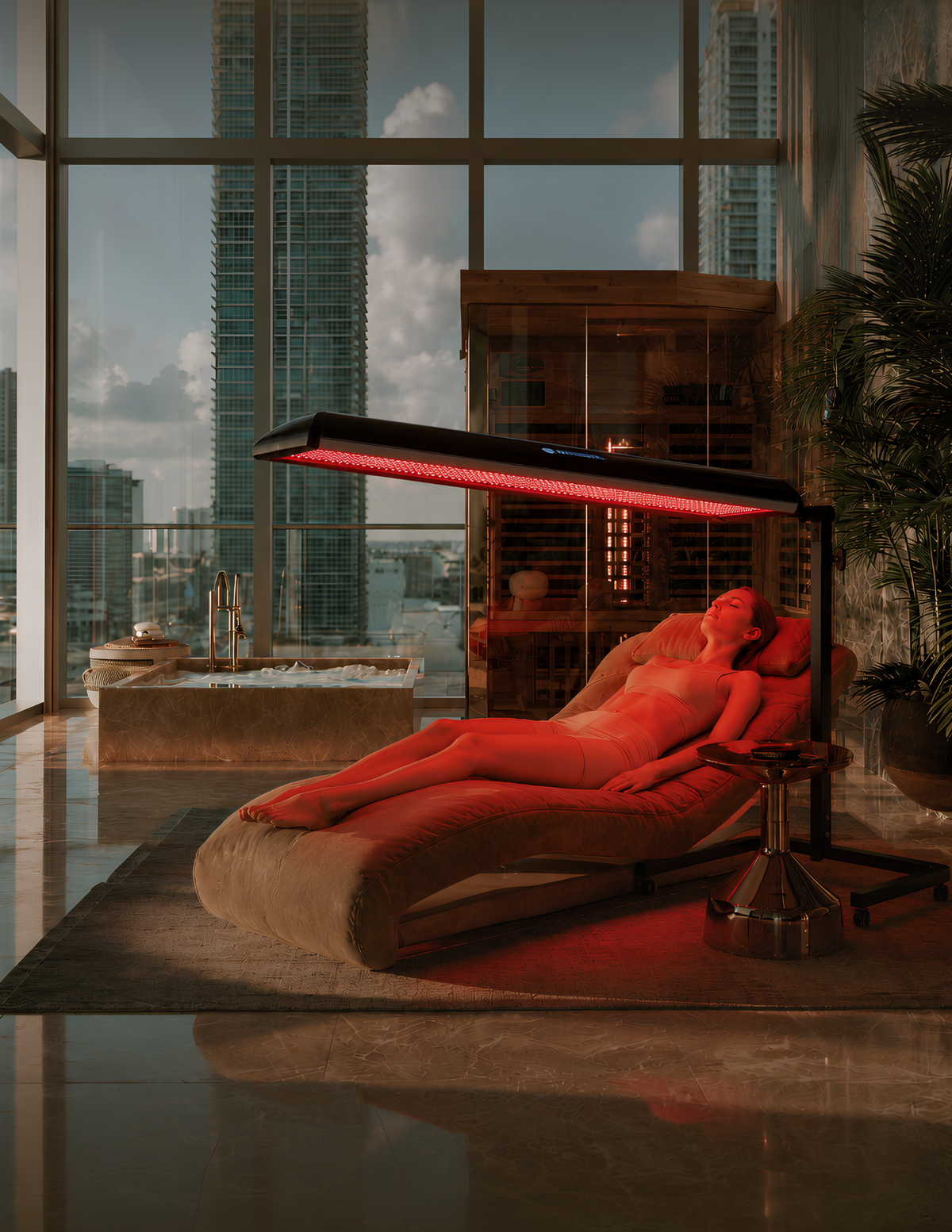

Person using the Protocol⁴ P1 multi wavelength light therapy panel while reclining

Multi-Wavelength Light Therapy Panel - Protocol⁴ P1

Name: Multi-Wavelength Light Therapy Panel - Protocol⁴ P1
Brand: Protocol4Health
Price: 8900.00 USD
Availability: InStock

Protocol4Health

Regular price $8,900.00

Regular price Sale price $8,900.00

Free shipping

12,312 LEDs, Six Wavelengths

120° Exposure Angle

Vertical, Horizontal & 360° Positioning

Bring six wavelengths into one uninterrupted light session with the Protocol⁴ P1. Its 12,312 LEDs deliver blue, green, red and near infrared light simultaneously, while the wheeled frame moves from vertical to horizontal positioning for recovery, movement and skin focused routines at home or in a professional wellness space.

Delivery & Assembly

Free shipping is included. Large equipment delivery may require up to 80 business days once payment, order information and coordination are complete. Package: 79.9 × 37 × 16.9 in, 158.7 lb. Inspect on delivery and note visible damage. Assembly requires two adults. Attach support to base, mount the panel, secure all fasteners and test the caster locks and positioning.

Setup, Placement & Resources

Product dimensions: 33.5 × 30 × 77.8 in

Net weight: 99 lb

Minimum wall clearance: 12 in

Service space: Approximately 39 in where practical

Electrical requirement: Dedicated grounded 110 V AC outlet for 9 A

Placement: Level dry indoor floor

Lock casters before use

Keep cable clear of moving points and fans unobstructed

Warranty

One year from delivery for the original purchaser. Eligible defects in materials and workmanship are covered. Approved parts, labor and service visits are provided without charge when required. Normal wear, user caused damage, unsuitable power, incorrect installation, accidents, liquid intrusion and unauthorized work are excluded.

Questions before you buy?

(302) 208-4650

Monday–Friday · 9am–4pm CT

Multi-Wavelength Light Therapy Panel - Protocol⁴ P1

$8,900.00

SIX WAVELENGTH LIGHT THERAPY

Let One Session Reach More of Your Routine

A light therapy routine can begin with the skin and extend into how the body feels after training, travel or a demanding week. The P1 brings six complementary wavelengths together so every session receives the full spectrum.

The extended panel can stand vertically beside the body or move into a horizontal position above a treatment bed or wellness lounger. Its wide 120° exposure angle casts light across a broad area while the height and angle adjust around the person.

All six wavelengths operate together. Blue and green light work primarily at the skin’s surface, red light supports skin and cellular energy routines, and near infrared reaches deeper areas associated with muscle and joint comfort.

The wheeled base lets the P1 move within a home wellness room, recovery studio or professional facility. Once positioned, lock the casters, set the timer and return to a consistent session without rebuilding the setup each time.

Six Wavelengths in Every Session

Blue, green, red and near infrared light operate together across 12,312 LEDs. One timer starts the complete spectrum, giving skin, movement and recovery focused routines a shared place in the week.

Position the Light Around the Body

Set the panel vertically for standing or seated use. Move it horizontally above a treatment bed or lounger for a reclined session. The adjustable mount and wheeled frame help the same system serve different routines.

A Professional Scale Session at Home

Lock the casters, set the angle and choose the session time. The broad half cabin geometry illuminates a substantial area while the user remains comfortable.

450, 525, 633, 660, 850 and 940 nm
Six wavelengths operate simultaneously
12,312 LEDs
38 LED strips
0.2 W 2835 LEDs
Half cabin exposure
120° angle
Vertical, horizontal and 360° adjustment
7.9 in height adjustment
Timer up to 30 minutes
Physical touch controls
Forced air cooling
Wheeled frame
Locking casters
Grounded US plug
IP53
Black or white

Product	Protocol⁴ P1 Light Therapy Panel
SKU	P661
Light type	0.2 W 2835 LED array
LED strips	38
LED count	12,312
Wavelengths	450, 525, 633, 660, 850 and 940 nm
Output	All six wavelengths simultaneously
Exposure angle	120°
Rated power	1,000 W
Power supply	110 V AC
Current	9 A
Connection	Grounded US plug
Controls	Integrated physical touch controls
Start response	Under three seconds
Session timer	Up to 30 minutes
Cooling	Forced air fans
Configuration	Half cabin
Positioning	Vertical, horizontal and 360°
Height adjustment	Approximately 7.9 in
Ingress protection	IP53
Dimensions	33.5 × 30 × 77.8 in
Net weight	99 lb
Package	79.9 × 37 × 16.9 in
Shipping weight	158.7 lb
Minimum wall clearance	12 in
Service space	Approximately 39 in where practical
Operating environment	32–158°F, up to 75% RH without condensation
Installation	Indoor support frame with locking casters
Colors	Black and white
Included	P1 panel, wheeled base, vertical support, panel mount, hand knobs and fasteners, grounded power cord, manual and warranty materials
Warranty	One year limited warranty
