4 Person Traditional Sauna and Acrylic Cold Plunge Combo - Revive
Revive Plunge
Authorized Retailer
Full manufacturer warranty
No reviews
Regular price$18,498.00
Regular price$16,840.00Sale price$18,498.00
Free shipping
240V / 50A Electrical Circuit
Plunge Cools to 32°F
1-Year Plunge Warranty
Bring four person traditional sauna heat together with an acrylic plunge that can move from 32°F cold to 107°F warm. The larger cabin makes the heat social, while the temperature range gives the water side more ways to fit the day. Bundle pricing brings both pieces home at a better combined price.
When will my order arrive?
Order BySep 30
Preparing OrderOct 1
–
Oct 2
Est. DeliveryOct 5
–
Oct 12
Delivery & Assembly
Free shipping is included with the bundle.
The sauna arrives in preassembled wall and roof panels and includes its roofing kit, volcanic stones, bucket and ladle. Plan a clear path from the delivery point to the installation area for the panels and sauna components.
The Acrylic Plunge ships as a separate tub and 1 HP chiller, with a combined empty weight of approximately 280 lb (180 lb tub, 100 lb chiller). Its final position should be prepared before delivery, with enough access to move both pieces into place.
Confirm that the installation area is level, stable and suitable for the dimensions and operating weight of each piece. The sauna requires a dedicated 240V / 50A circuit with a NEMA 6-50P connection.
Dimensions, Access & Placement
Plan for two distinct footprints within the same setting.

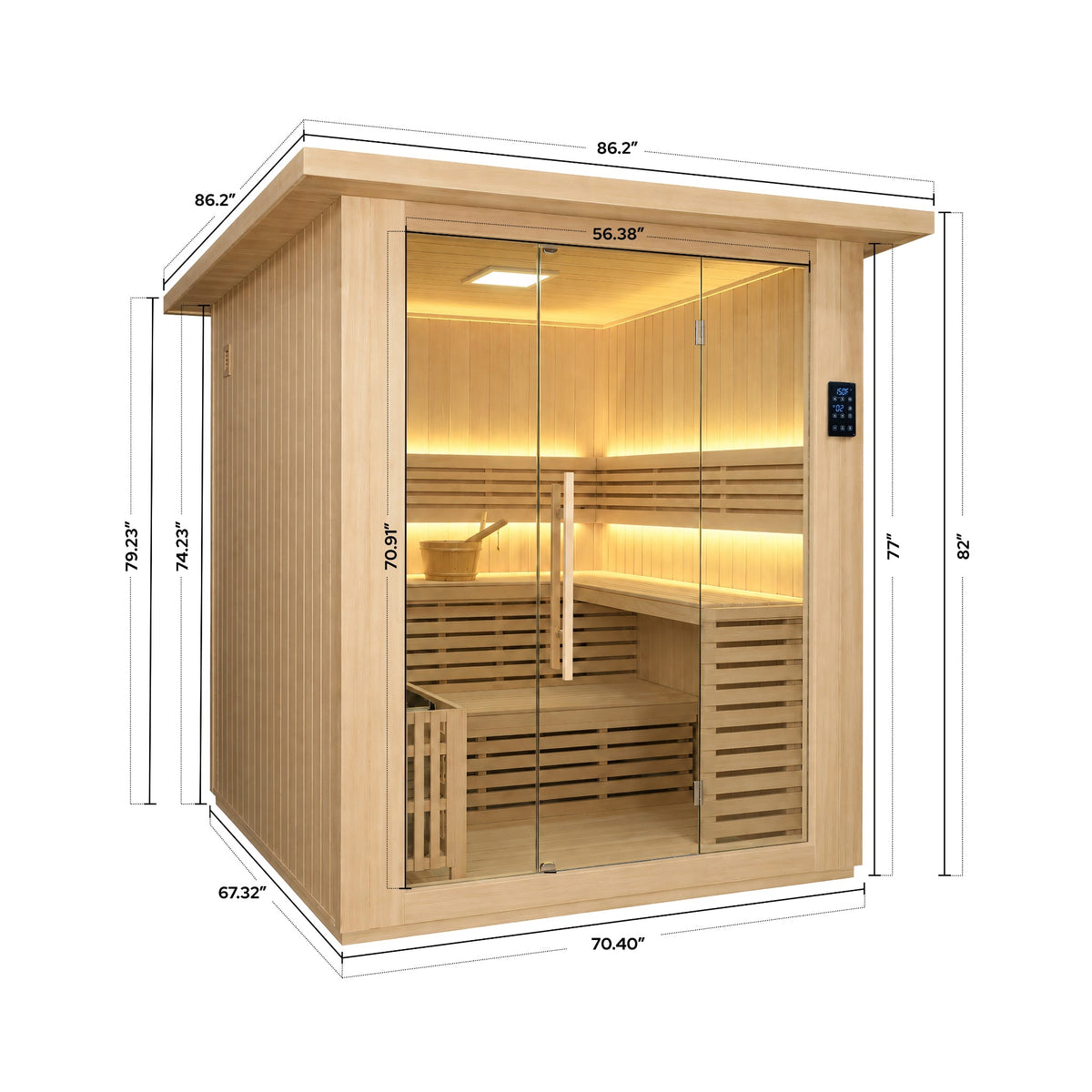

The sauna base measures 67.32" L by 70.40" W and stands 82" high at the front with the roof installed. The Acrylic Plunge tub measures 72.8" L by 32.7" W by 26.7" H, with its chiller measuring 20" D by 15.5" W by 23.3" H.
Place them close enough for a natural transition while preserving comfortable entry around both doors and openings. Keep the route between them clear and allow practical access for cleaning and routine care.
Before delivery, confirm the complete access path rather than checking only the final room. Doorways, gates, turns, stairs and overhead clearance all affect how the sauna panels and assembled plunge reach their positions.
Warranty
The Revive Acrylic Plunge includes a one-year limited manufacturer warranty from the delivery date. Coverage applies to the original purchaser for residential or commercial use and addresses qualifying defects in materials and workmanship.
Covered components include the cooling system and internal plumbing. Revive may repair the affected component or provide a new or reconditioned replacement part after reviewing the claim.
Improper installation, unsuitable electrical service, freezing, blocked ventilation, poor water care, missed maintenance, unauthorized modifications, consumables and third-party labor are excluded.
Fill the sauna with conversation, take the heat slowly and prepare the plunge for what comes next. Deep cold can follow the sauna, while the warm range gives the acrylic tub another role when the season or routine changes.
The result is a permanent home setting with room to share and flexibility in the water.
Heat, Then Cold
Keep the Transition Inside Your Own Space
Move from the warmth of the sauna to the plunge while the moment still feels connected. Both pieces stay ready in the same setting, so the transition becomes a natural part of the session.
The sauna gives two people room to share the heat. The plunge waits beside it at the chosen temperature, with no separate chiller occupying the space around the tub.
One Setting, Two Dedicated Pieces
Give Each Part of the Routine Its Place
The compact sauna footprint and integrated plunge design make it easier to plan the pair as one home installation. Position the cabin for comfortable entry, leave a clear route to the water and choose the plunge finish that works with the surrounding space.
Tan, Grey and Black exterior options change the look without changing the fixed sauna and plunge configuration.
Designed as one complete system
What is built into this bundle?
Traditional Heat for Four

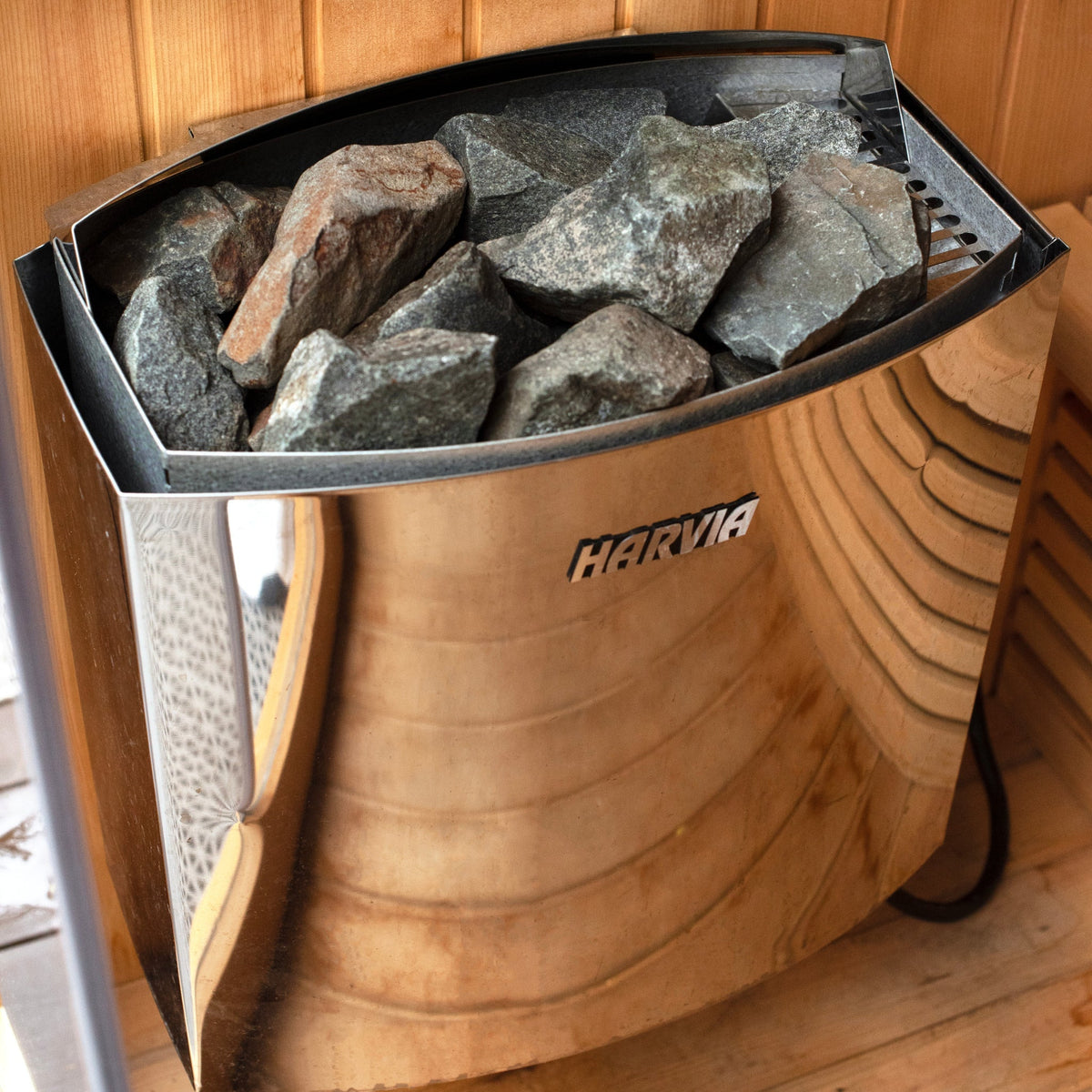

The thermo treated Hemlock sauna uses an 8 kW Harvia stone heater. According to the manufacturer, it reaches temperatures up to 194°F.
One Acrylic Plunge for Cold and Warm Water
The external 1 HP chiller provides cooling and heating. According to the manufacturer, its range extends from 32°F to 107°F.
A Finished Tub Beside the Hemlock Cabin
Fiberglass reinforced acrylic gives the plunge a solid, permanent feel. The insulated tub and cover help maintain the selected temperature.
Shop each piece separately
Want a closer look at what's inside this bundle? Each piece has its own product page with full specs and photos.
4 Person Traditional Sauna and Acrylic Cold Plunge Combo - Revive FAQs
Clear answers about setup, delivery and warranty.
It includes a four person traditional sauna, Acrylic Plunge, external 1 HP chiller and sauna accessories.
Yes. According to the manufacturer, it operates between 32°F and 107°F.
Yes. Include room for the external chiller and connections when planning the setting.
It requires a dedicated 240V / 50A circuit with a NEMA 6-50P connection.
The Acrylic Plunge and chiller carry a one year manufacturer warranty, with optional extensions available.
Fixed bundle with a four person traditional sauna and Acrylic Plunge
Harvia BC80E 8 kW stone heater
Sauna temperature up to a manufacturer-rated 194°F
Thermo treated Hemlock sauna cabin
1 HP external chiller for cooling and heating
Acrylic Plunge temperature range from 32°F to 107°F
Ice making mode at 32°F
Fiberglass reinforced acrylic tub construction
Ozone sanitation and replaceable cartridge filtration
Digital touchscreen and Tuya Smart app control
Volcanic sauna stones, roofing kit, bucket and ladle included
Free shipping
Sauna
Product type
Traditional sauna
Brand
Revive
Capacity
4 people
Wood
Thermo treated Hemlock
Construction
Insulated wall and roof panels
Heater brand
Harvia
Heater model
BC80E
Heater output
8 kW
Maximum temperature
194°F
Control system
Smart touchscreen
Remote control
Wi-Fi app
Scheduling
Yes
Audio
Integrated Bluetooth speakers
Lighting
Interior, exterior and adjustable RGB lighting
Electrical requirement
240V, 50A dedicated circuit
Plug
NEMA 6-50P
Base dimensions
67.32" L × 70.40" W
Roof dimensions
83.03" L × 86.2" W
Front height
82"
Rear height
79.23"
Installation location
Indoor or outdoor
Assembly format
Preassembled wall and roof panels
Included
Heater, sauna stones, roofing kit, bucket and ladle
Acrylic Plunge
Manufacturer
Revive Plunge
Product type
Acrylic cold plunge tub with 1 HP chiller
Configurations
Residential or Commercial
Tub dimensions
72.8 L × 32.7 W × 26.7 H in
Tub base length
44 in
Chiller dimensions
20 D × 15.5 W × 23.3 H in
Construction
Fiberglass-reinforced acrylic tub
Insulation
Fully insulated tub and cover
Tub weight
180 lb empty
Chiller weight
100 lb
Combined empty weight
Approximately 280 lb
Recommended water capacity
110 gal
Approximate filled weight
1,097 lb at the recommended capacity
Maximum water capacity
140 gal
Maximum filled weight
Approximately 1,348 lb
Temperature range
32°F–107°F
Temperature system
1 HP heating and cooling chiller
Ice-making mode
Available at 32°F
Filtration
Replaceable 20-micron cartridge filter and washable mesh pre-filter
Sanitation
Built-in ozone sanitation
Controls
Digital touchscreen
App control
Tuya Smart app over 2.4 GHz WiFi
Lighting
Color-changing LED light
Electrical requirement
Dedicated grounded 110–120 V / 15 A GFCI circuit
Published power draw
1,350 W with system running / 121 W with compressor off
Plumbing
No permanent plumbing required
Connections
Quick-connect inlet and outlet hoses
Drainage
Gravity drain through the rear drain nozzle
Placement
Indoor or outdoor on a stable, level and water-resistant surface
Ventilation
Maintain at least 24 in of unobstructed clearance around the chiller airflow area
Bundle
Configuration
Fixed sauna and plunge package
Product format
Single SKU
Shipping
Free
Free shipping is included with the bundle.
The sauna arrives in preassembled wall and roof panels and includes its roofing kit, volcanic stones, bucket and ladle. Plan a clear path from the delivery point to the installation area for the panels and sauna components.
The Acrylic Plunge ships as a separate tub and 1 HP chiller, with a combined empty weight of approximately 280 lb (180 lb tub, 100 lb chiller). Its final position should be prepared before delivery, with enough access to move both pieces into place.
Confirm that the installation area is level, stable and suitable for the dimensions and operating weight of each piece. The sauna requires a dedicated 240V / 50A circuit with a NEMA 6-50P connection.
Plan for two distinct footprints within the same setting.
The sauna base measures 67.32" L by 70.40" W and stands 82" high at the front with the roof installed. The Acrylic Plunge tub measures 72.8" L by 32.7" W by 26.7" H, with its chiller measuring 20" D by 15.5" W by 23.3" H.
Place them close enough for a natural transition while preserving comfortable entry around both doors and openings. Keep the route between them clear and allow practical access for cleaning and routine care.
Before delivery, confirm the complete access path rather than checking only the final room. Doorways, gates, turns, stairs and overhead clearance all affect how the sauna panels and assembled plunge reach their positions.
The Revive Acrylic Plunge includes a one-year limited manufacturer warranty from the delivery date. Coverage applies to the original purchaser for residential or commercial use and addresses qualifying defects in materials and workmanship.
Covered components include the cooling system and internal plumbing. Revive may repair the affected component or provide a new or reconditioned replacement part after reviewing the claim.
Improper installation, unsuitable electrical service, freezing, blocked ventilation, poor water care, missed maintenance, unauthorized modifications, consumables and third-party labor are excluded.
